Spartan Mowers 486-0011-00 Wire Harness - Kawasaki 730cc / Briggs & Stratton 25HP & 27HP (Warner)

Spartan Wire Harness 486-0011-00 – 25HP & 27HP Briggs & Kawasaki Engines

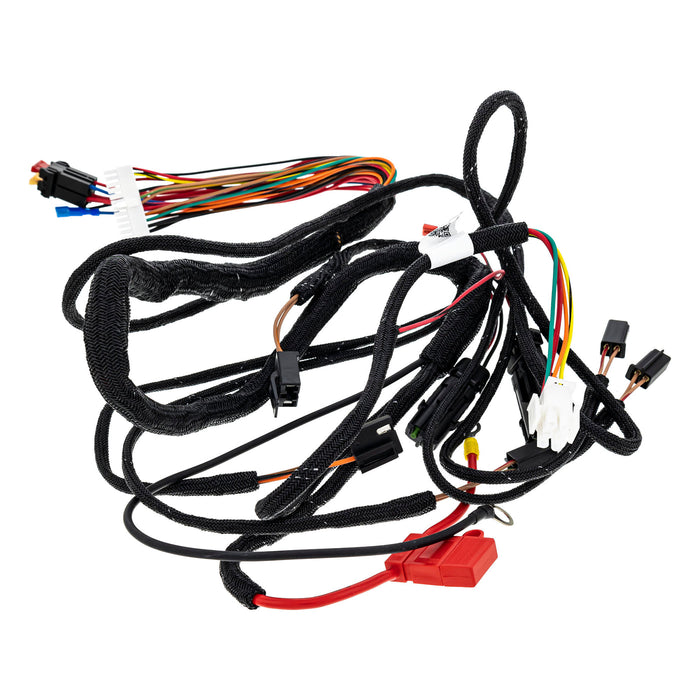

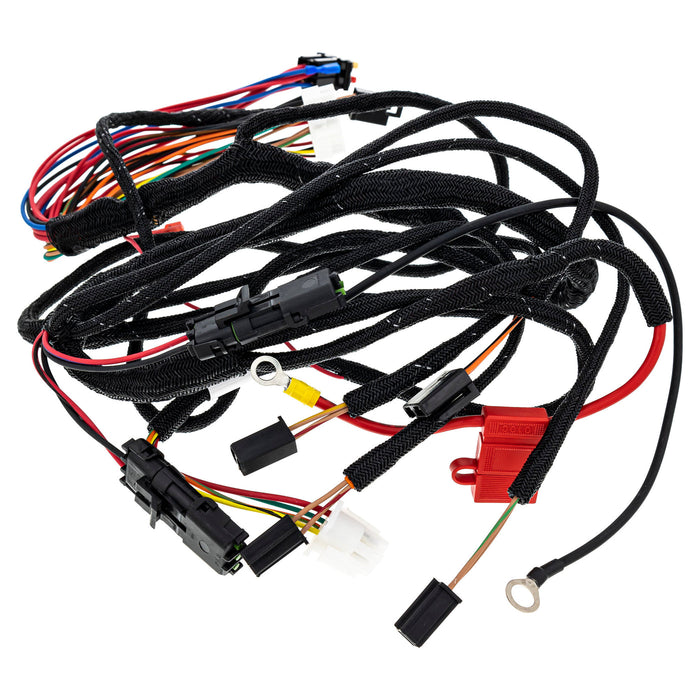

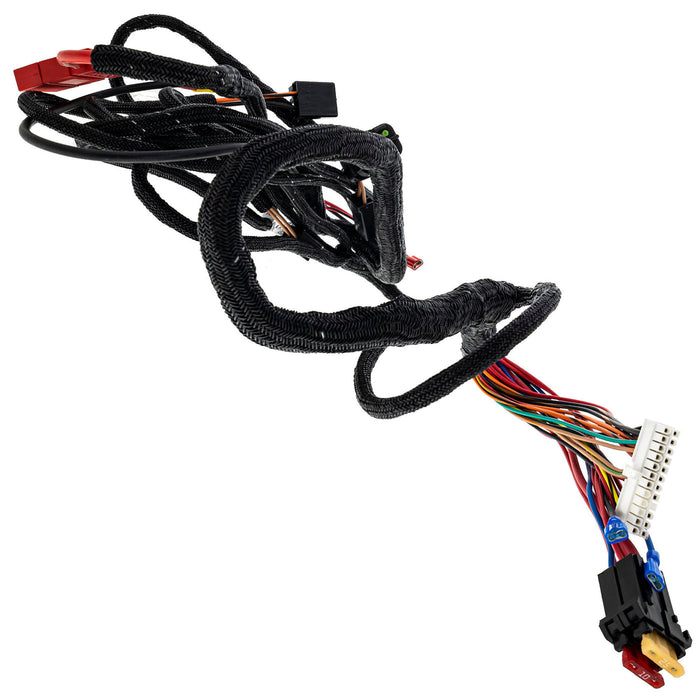

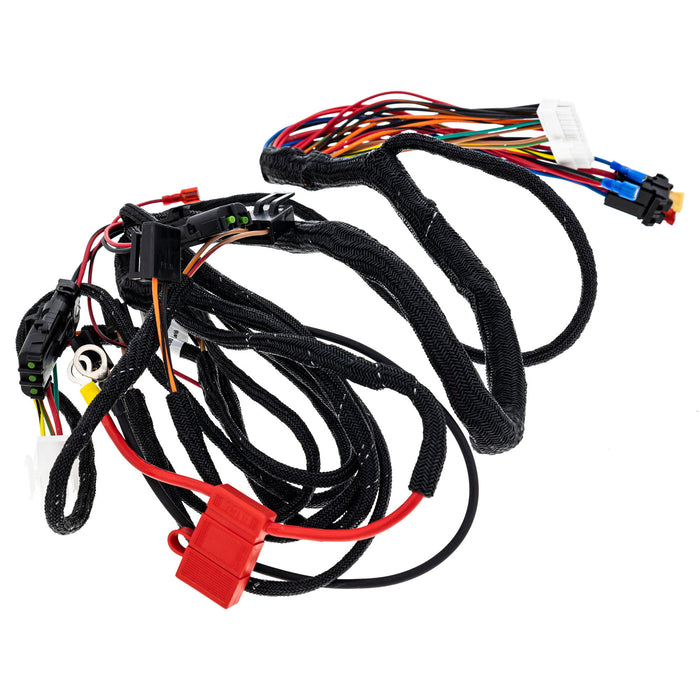

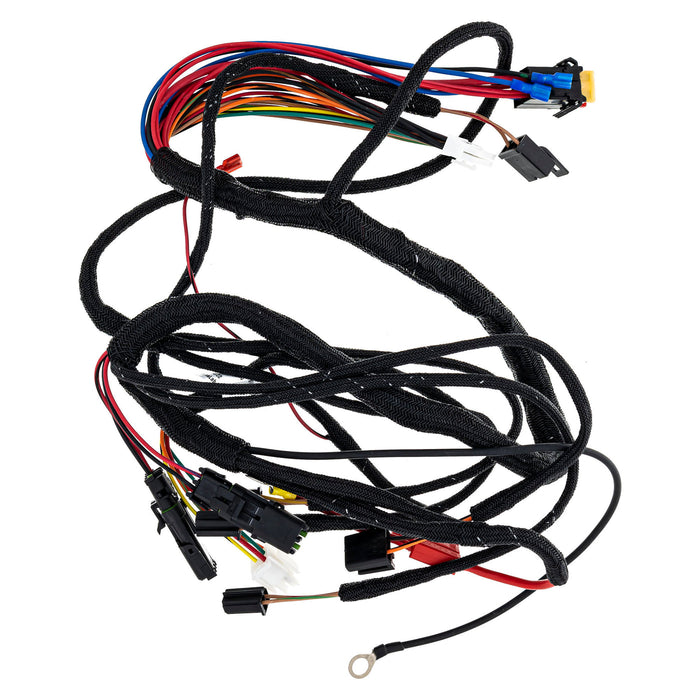

The Spartan Wire Harness (486-0011-00) is a complete OEM electrical replacement designed to simplify restoration and renewal of your mower’s wiring system. Built to Spartan factory specifications, this harness ensures proper electrical routing, dependable connections, and long-term reliability.

Designed for Spartan models equipped with 25HP and 27HP Briggs & Stratton engines as well as Kawasaki FR691, FR730, and FS730 engines, this complete harness helps eliminate electrical issues caused by wear, corrosion, or damage.

Key Features & Benefits

• Genuine Spartan OEM Part: Designed to exact factory specifications.
• Complete Replacement Harness: Simplifies full electrical system renewal.
• Engine Compatibility: 25HP & 27HP Briggs & Stratton, Kawasaki FR691, FR730, FS730.
• Precision Fit: Built specifically for designated Spartan mower models.
• Improves Reliability: Restores proper electrical performance and function.

Part Number

• 486-0011-00

Fitment

RZ Series

• RZ 54" Briggs 25 HP Commercial (SZR154724BS)
• RZ Series Tuff Torq 300 with 20” Tires
• RZ 54" Briggs 25 HP Commercial (SZRZ154724BS)

RZ Pro Series

• RZ Pro 48" Briggs 25 HP Commercial (SZPR248724BS)
• RZ Pro 48" Kawasaki FR691 (SZPR248747KM)
• RZ Pro 54" Briggs 25 HP Commercial (SZPR254724BS)
• RZ Pro 54" Kawasaki FR691 (SZPR254747KM)
• RZ Pro 61" Briggs 25 HP Commercial (SZPR261724BS)

RZ HD Series

• 48" Briggs 25 HP Commercial (SZHD148724BS)
• 48" Briggs 27 HP Commercial (SZHD148810BS)
• 48" Kawasaki FR691 (SZHD148691KR)
• 54" Briggs 25 HP Commercial (SZHD154724BS)
• 54" Briggs 27 HP Commercial (SZHD154810BS)
• 61" Briggs 27 HP Commercial (SZHD161810BS)
• 61" Kawasaki FR730 (SZHD161730KR)

RT Pro & RT HD Series

• 54" & 61" Briggs 27 HP Commercial Models
• 54" & 61" Vanguard 26 HP Models
• 54" Kawasaki FT730 Models
• 54" & 61" Kawasaki FX1000 35 HP Models

SRT Pro & SRT HD Series

• 54" & 61" Briggs 27 HP Commercial Models
• 54" & 61" Vanguard 26 HP Models

For complete model and serial number verification, please reference your mower’s specification tag or contact us prior to ordering.

Restore factory electrical performance and eliminate wiring issues with the Spartan 486-0011-00 Wire Harness. Built to OEM standards and engineered for durability, this harness keeps your Spartan mower running reliably season after season.
