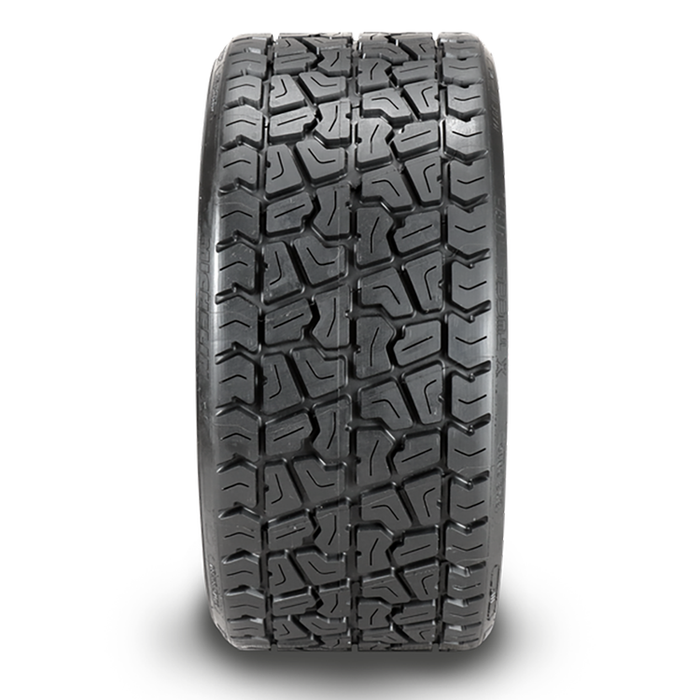

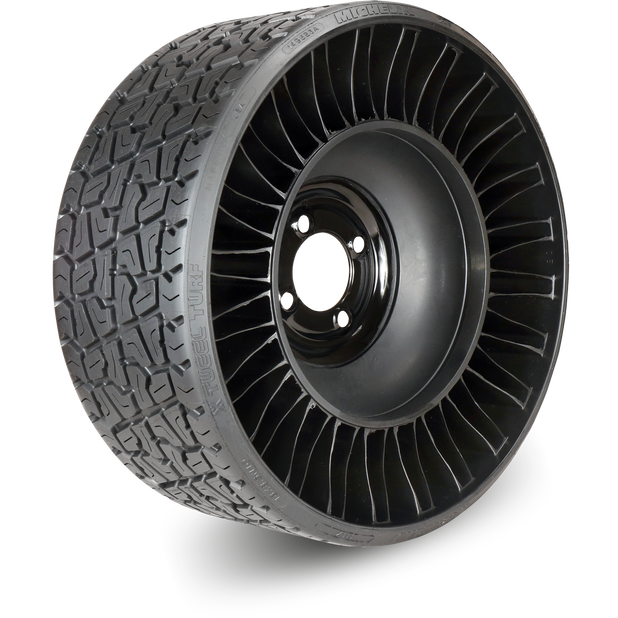

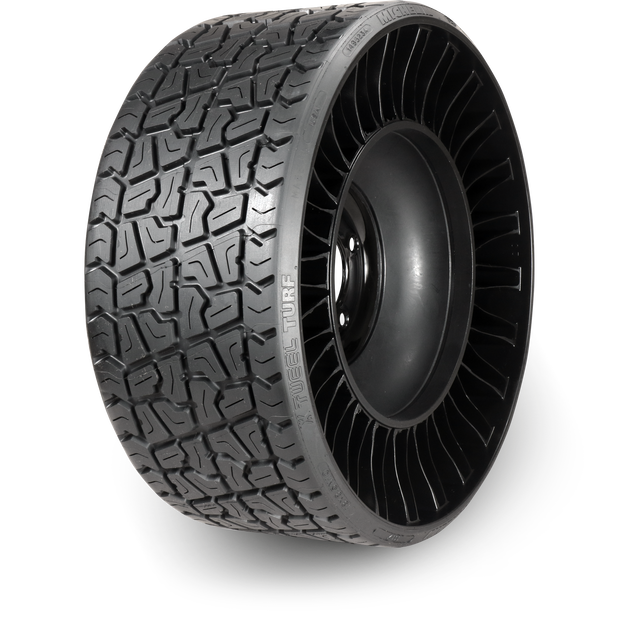

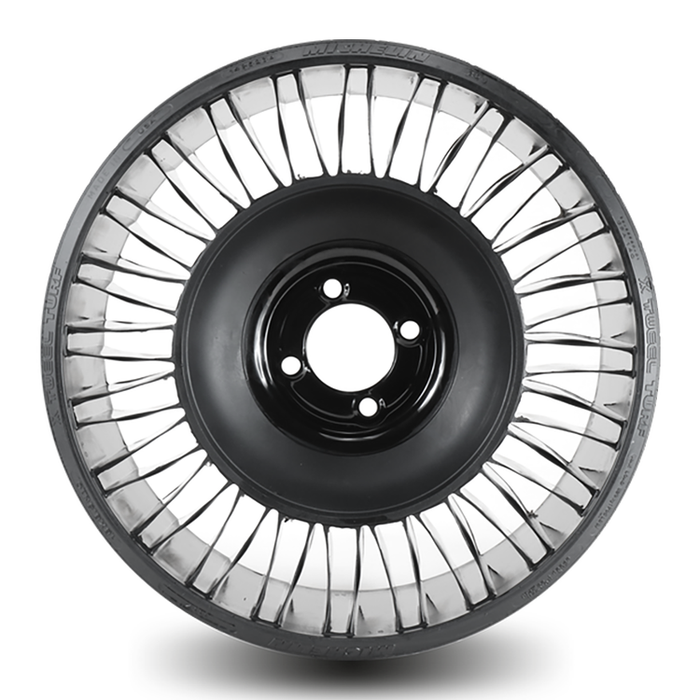

Michelin 01133 X Tweel Turf 18x8.5N10 Airless Rear Tire – SCAG & Spartan – Single

SOLD INDIVIDUALLY: Includes ONE Michelin Tweel tire/wheel unit. This is NOT a pair. Order a quantity of 2 if replacing both rear units.

The Michelin 01133 X Tweel Turf airless radial tire combines the tire and wheel into a single unit, replacing the conventional tire, wheel and valve assembly. Its airless design eliminates air-pressure maintenance, puncture-related flats and unseated beads.

Designed for the SCAG and Spartan mower applications listed below, the X Tweel Turf maintains a consistent hub height to help support an even cut. Flexible poly-resin spokes carry the load and help absorb impacts, while providing lateral stability when mowing across slopes.

Features and Benefits

• Airless radial design: No inflation or air-pressure checks required.
• Integrated tire and wheel: Replaces the conventional tire, wheel and valve assembly.
• Consistent hub height: Helps maintain consistent mower deck height for an even cut.
• Multi-directional tread: Designed to provide traction and lateral stability while helping minimize turf damage.
• Heavy-gauge steel hub: Provides a durable mounting structure.
• Flexible poly-resin spokes: Support the load and help absorb bumps for operator comfort.
• Long-wearing design: Designed to deliver two to three times the wear life of a pneumatic tire at equal tread depth. Actual wear life varies with operating conditions and use.

Product Specifications

• Brand: Michelin
• Michelin Part Number (MSPN): 01133
• Product: X Tweel Turf
• Tire Size: 18x8.5N10
• Construction: Airless radial tire/wheel unit
• Position: Rear
• Bolt Pattern: 4x4 inches — four mounting holes on a 4-inch bolt circle
• Wheel Offset: -0.4 inch
• Maximum Load: 529 lbs per unit
• Unit Weight: 28.4 lbs
• Quantity: One tire/wheel unit; not a pair

SCAG Fitment

• Freedom Z: SFZ-48H — 48-inch deck; SFZ-52H — 52-inch deck.
• Liberty Z: SZL-36 — 36-inch deck; SZL-42 — 42-inch deck; SZL-48 — 48-inch deck; SZL-52 — 52-inch deck; SZL-61 — 61-inch deck.
• EVZ: SEVZ-52H — 52-inch deck.

Spartan Fitment

• RZ C: 54-inch deck.

Important Fitment Information

Spartan RZ C models with a 42-inch deck are not included.

Tire size alone does not establish compatibility. Confirm Michelin part number 01133, mower model, deck width, bolt pattern and wheel offset before ordering. Do not assume other Tweel units of the same tire size are interchangeable.

Model years are not specified in the supplied fitment information.
