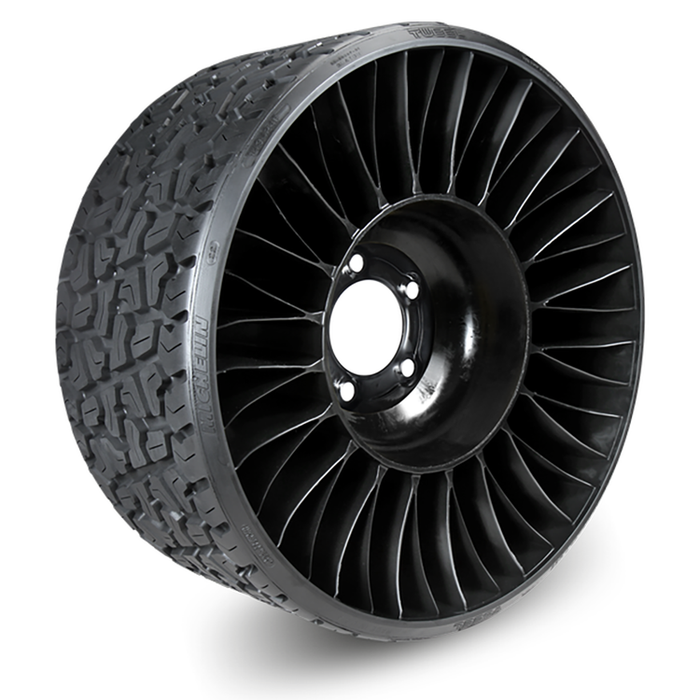

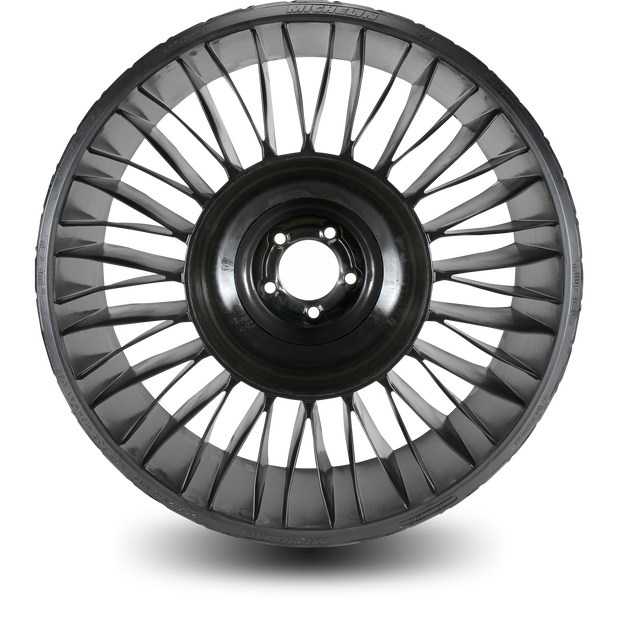

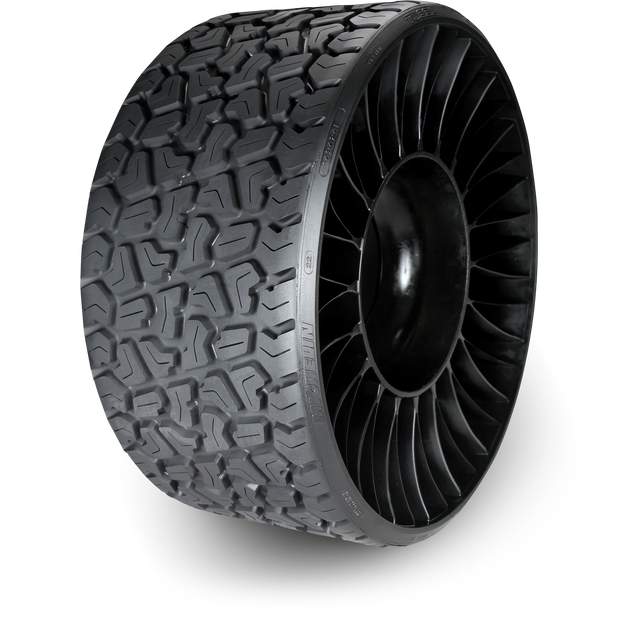

Michelin 54411 X Tweel Turf 24x12N12 Airless Rear Tire – SCAG & Spartan – Single
SOLD INDIVIDUALLY: Includes ONE Michelin Tweel tire/wheel unit. This is NOT a pair. Order a quantity of 2 if replacing both rear units.
The Michelin 54411 X Tweel Turf airless radial tire combines the tire and wheel into a single unit, replacing the conventional tire, wheel and valve assembly. Its airless design eliminates air-pressure maintenance, puncture-related flats and unseated beads.
Designed for the SCAG and Spartan mower applications listed below, the X Tweel Turf maintains a consistent hub height to help support an even cut. Flexible poly-resin spokes carry the load and help absorb impacts, while providing lateral stability when mowing across slopes.
Features and Benefits
- Airless radial design: No inflation or air-pressure checks required.
- Integrated tire and wheel: Replaces the conventional tire, wheel and valve assembly.
- Consistent hub height: Helps maintain consistent mower deck height for an even cut.

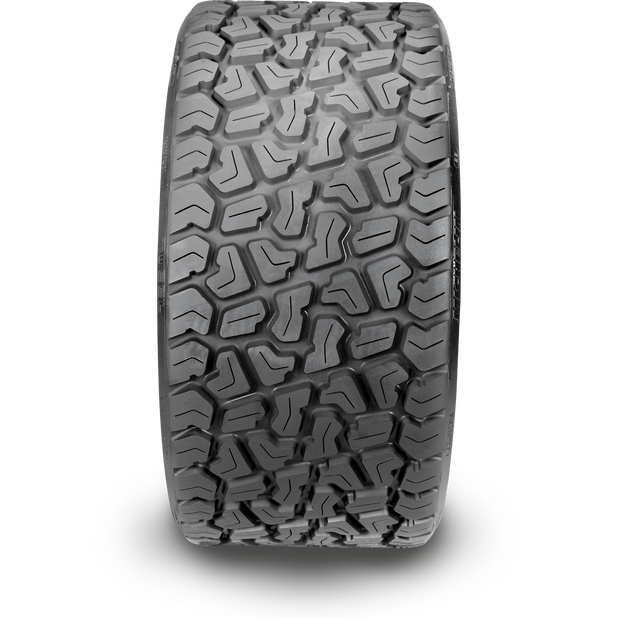

- Multi-directional tread: Designed to provide traction and lateral stability while helping minimize turf damage.
- Heavy-gauge steel hub: Provides a durable mounting structure.
- Flexible poly-resin spokes: Support the load and help absorb bumps for operator comfort.
- Long-wearing design: Designed to deliver two to three times the wear life of a pneumatic tire at equal tread depth. Actual wear life varies with operating conditions and use.
Product Specifications
- Brand: Michelin
- Michelin Part Number (MSPN): 54411
- Product: X Tweel Turf
- Tire Size: 24x12N12
- Construction: Airless radial tire/wheel unit
- Position: Rear
- Bolt Pattern: 5x4.5 inches — five mounting holes on a 4.5-inch bolt circle
- Wheel Offset: -1.3 inches
- Maximum Load: 750 lbs per unit
- Unit Weight: 47.7 lbs
- Quantity: One tire/wheel unit; not a pair
SCAG Fitment
- V-Ride XL: All Models — 61-inch deck.
- Cheetah: all models — 61-inch and 72-inch decks. Spacer may be required.
- Cheetah II: SCZII-61 — 61-inch deck; SCZII-72 — 72-inch deck. Spacer may be required.
Spartan Fitment
- RT PRO: 54-inch and 61-inch decks.
- RT HD: 54-inch, 61-inch and 72-inch decks.
- SRT PRO: 54-inch and 61-inch decks.
- SRT HD: 54-inch and 61-inch decks.
- SRT XD: 61-inch and 72-inch decks.
- SRT XDe: 61-inch deck.
- Mark Mart SRT: 61-inch and 72-inch decks.
- KGZ-XD: 61-inch deck.
- KG-XD: 61-inch deck.
- KG-PRO: 61-inch deck.
Cross Reference — For Identification Only
- Bad Boy: 022-4050-00, 022-4092-00, 022-4100-00, 022-4200-00
- Ferris: 5109038, 5109039FS, 5109040, 5109043
- Gravely: 07101511, 07101536
- SCAG: 484024, 487422, 487795
- Spartan: 422-0005-00, 422-0021-00, 422-0028-00, 422-0054-00, 422-0058-00
The cross-reference numbers are provided for identification only and do not establish fitment for every application using those numbers. Confirm compatibility before ordering. This product is manufactured by Michelin, not by the listed OEM brands. OEM names are used solely to identify applications and do not imply affiliation or endorsement.
Important Fitment Information
SCAG Cheetah and Cheetah II: Spacer may be required. Confirm spacer requirements for your exact application before installation.
Spartan SRT XDe, KG-XD and KG-PRO models with 54-inch decks are not included.
Model names are reproduced as supplied, including “Mark Mart SRT.” References to “all models” apply only within the named series and listed deck widths.
Tire size alone does not establish compatibility. Confirm Michelin part number 54411, mower model, deck width, bolt pattern and wheel offset before ordering. Do not assume other Tweel units of the same tire size are interchangeable.
Model years are not specified in the supplied fitment information.
