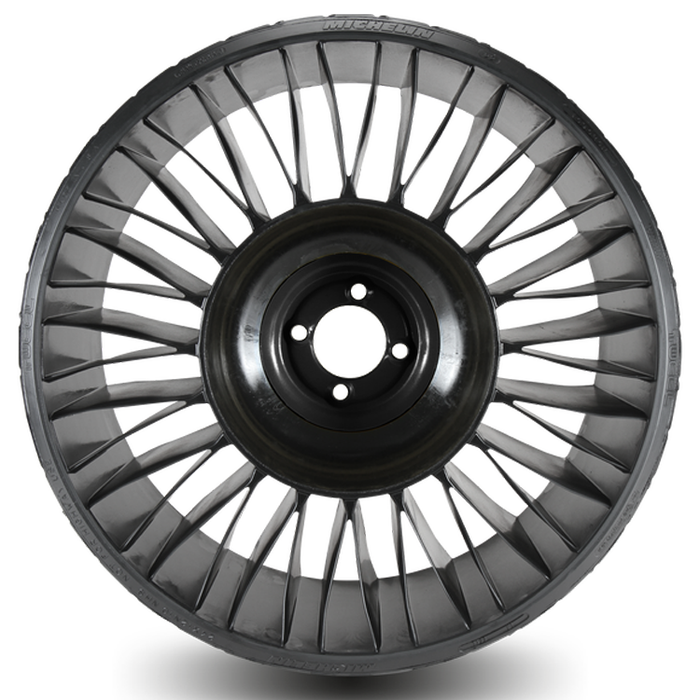

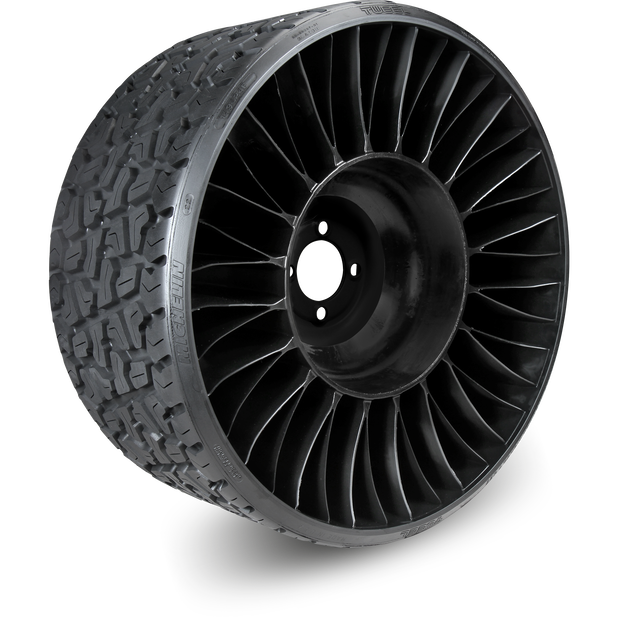

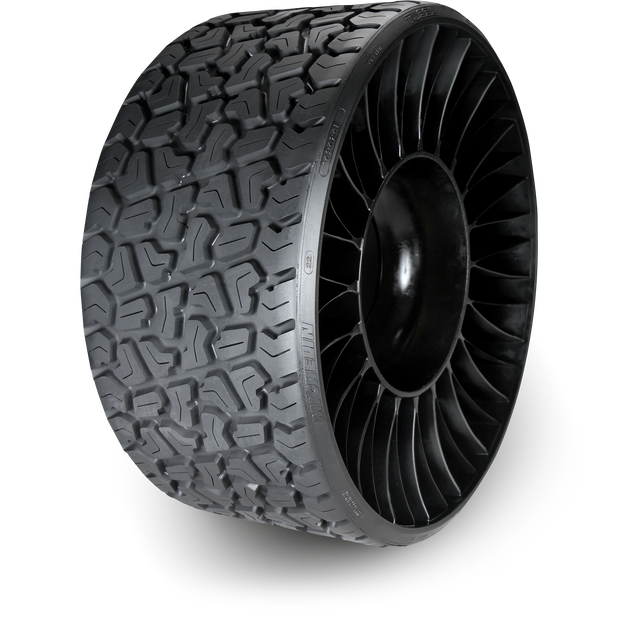

Michelin 77185 X Tweel Turf 24x12N12 Airless Rear Tire – SCAG Patriot, Tiger Cat II & V-Ride II – Single
SOLD INDIVIDUALLY: Includes ONE Michelin Tweel tire/wheel unit. This is NOT a pair. Order a quantity of 2 if replacing both rear units.
The Michelin 77185 X Tweel Turf airless radial tire combines the tire and wheel into a single unit, replacing the conventional tire, wheel and valve assembly. Its airless design eliminates air-pressure maintenance, puncture-related flats and unseated beads.
Designed for the SCAG mower applications listed below, the X Tweel Turf maintains a consistent hub height to help support an even cut. Flexible poly-resin spokes carry the load and help absorb impacts, while providing lateral stability when mowing across slopes.
Features and Benefits
- Airless radial design: No inflation or air-pressure checks required.
- Integrated tire and wheel: Replaces the conventional tire, wheel and valve assembly.
- Consistent hub height: Helps maintain consistent mower deck height for an even cut.

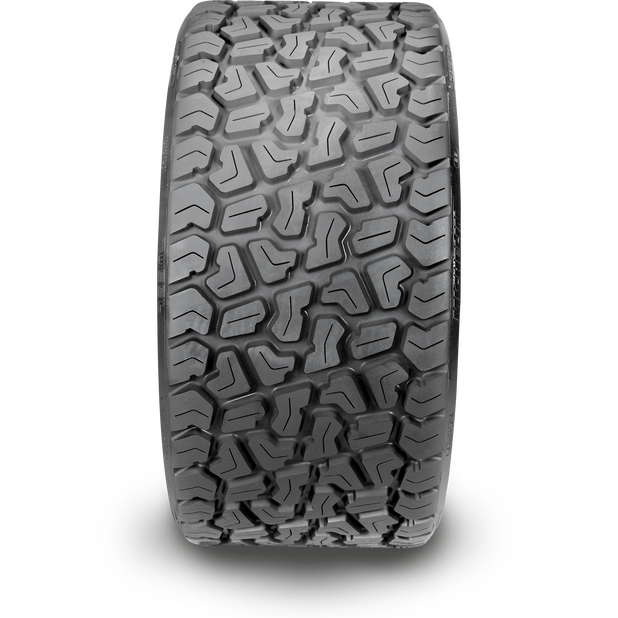

- Multi-directional tread: Designed to provide traction and lateral stability while helping minimize turf damage.
- Heavy-gauge steel hub: Provides a durable mounting structure.
- Flexible poly-resin spokes: Support the load and help absorb bumps for operator comfort.
- Long-wearing design: Designed to deliver two to three times the wear life of a pneumatic tire at equal tread depth. Actual wear life varies with operating conditions and use.
Product Specifications
- Brand: Michelin
- Michelin Part Number (MSPN): 77185
- Product: X Tweel Turf
- Tire Size: 24x12N12
- Construction: Airless radial tire/wheel unit
- Position: Rear
- Bolt Pattern: 4x4 inches — four mounting holes on a 4-inch bolt circle
- Wheel Offset: -2.2 inches
- Maximum Load: 750 lbs per unit
- Unit Weight: 48.2 lbs
- Quantity: One tire/wheel unit; not a pair
SCAG Fitment
- Patriot: SPZ52H — 52-inch deck; SPZ561H — 61-inch deck.
- Tiger Cat II: STCII-48 — 48-inch deck; STCII-52 — 52-inch deck; STCII-61 — 61-inch deck.
- V-Ride II: SVRII-48V — 48-inch deck; SVRII-52V — 52-inch deck; SVRII-61V — 61-inch deck.
Important Fitment Information
The Patriot model code SPZ561H is reproduced exactly as supplied. Verify the application against your mower’s identification information before ordering.
This listing covers only the SCAG models and deck widths listed above. Do not assume compatibility with other models within the same mower series.
Tire size alone does not establish compatibility. Confirm Michelin part number 77185, mower model, deck width, bolt pattern and wheel offset before ordering. Do not assume other Tweel units of the same tire size are interchangeable.
Model years are not specified in the supplied fitment information.
