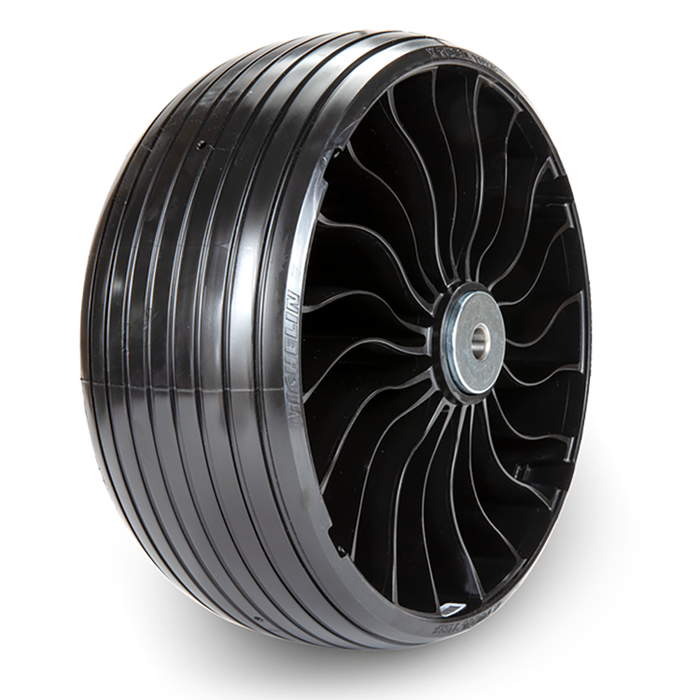

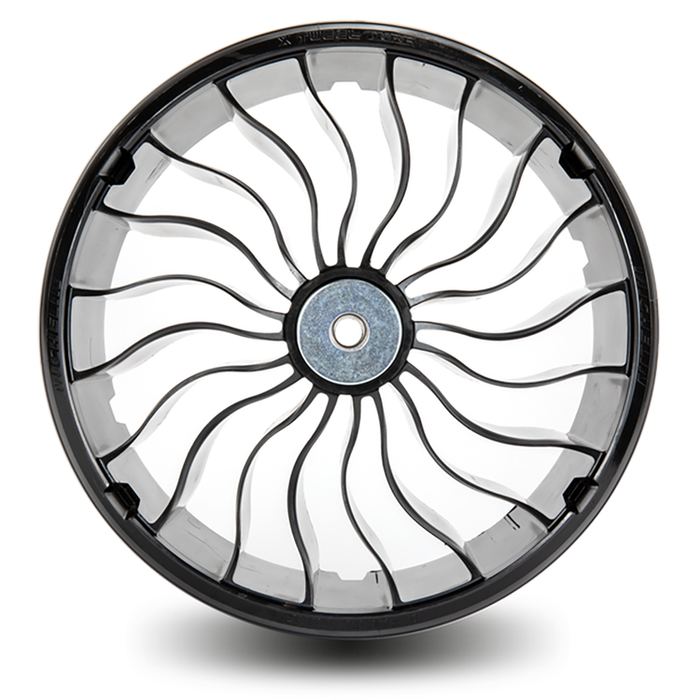

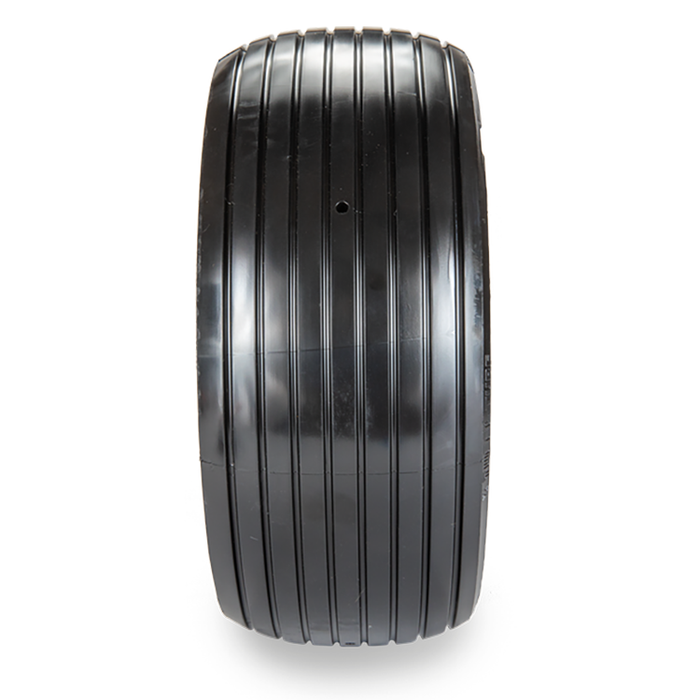

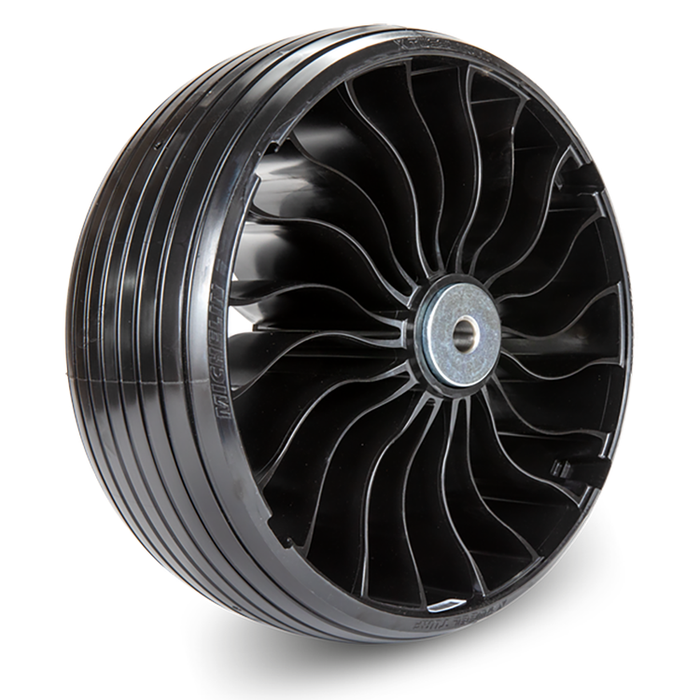

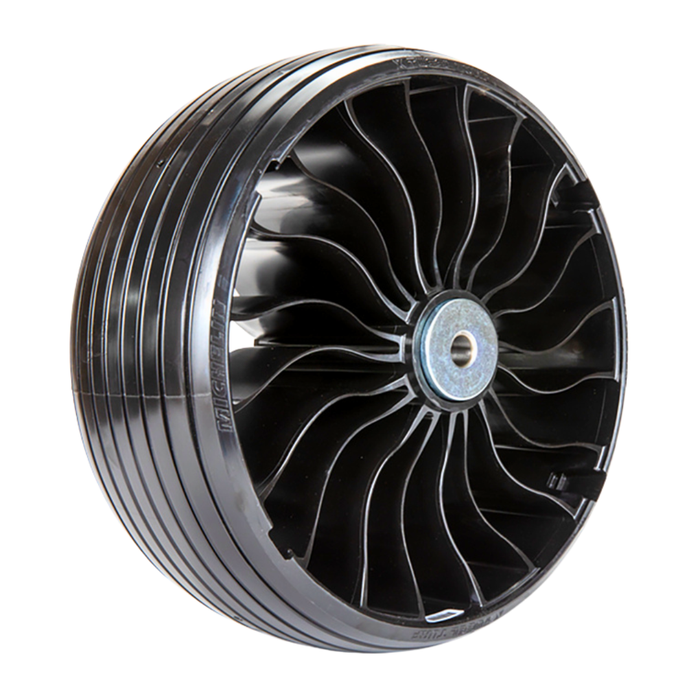

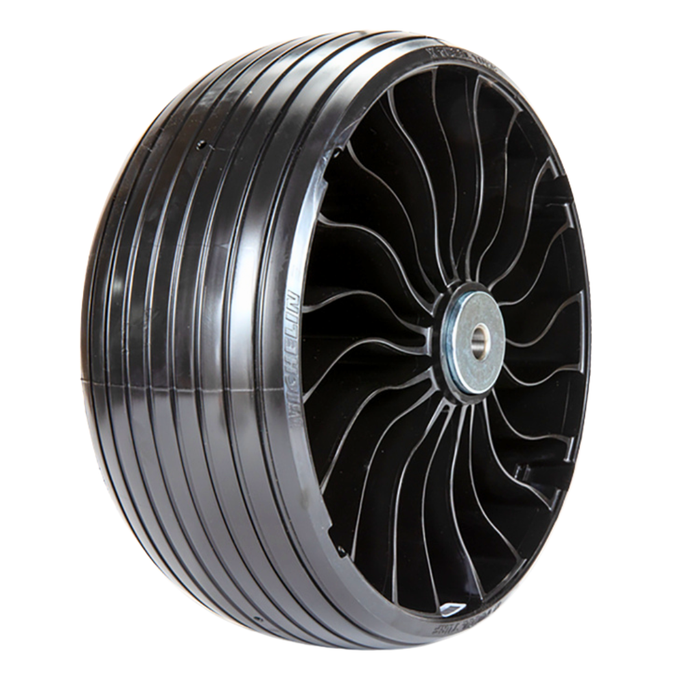

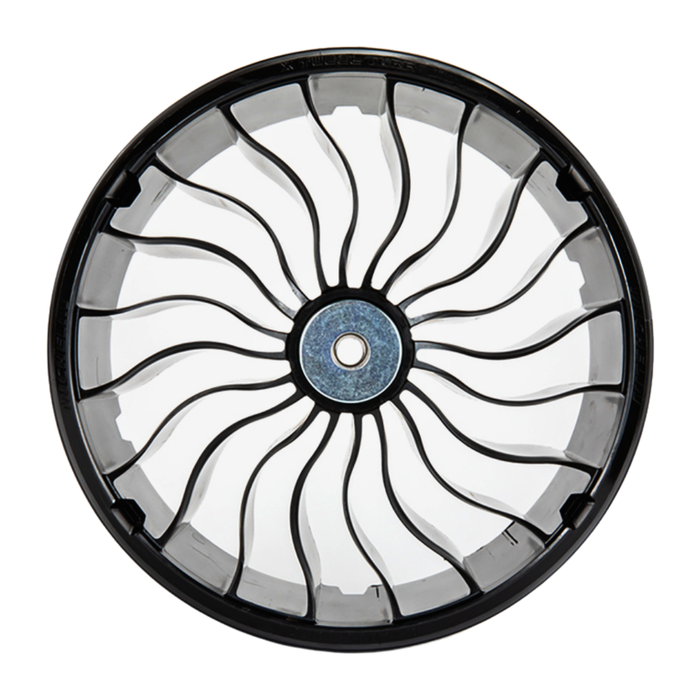

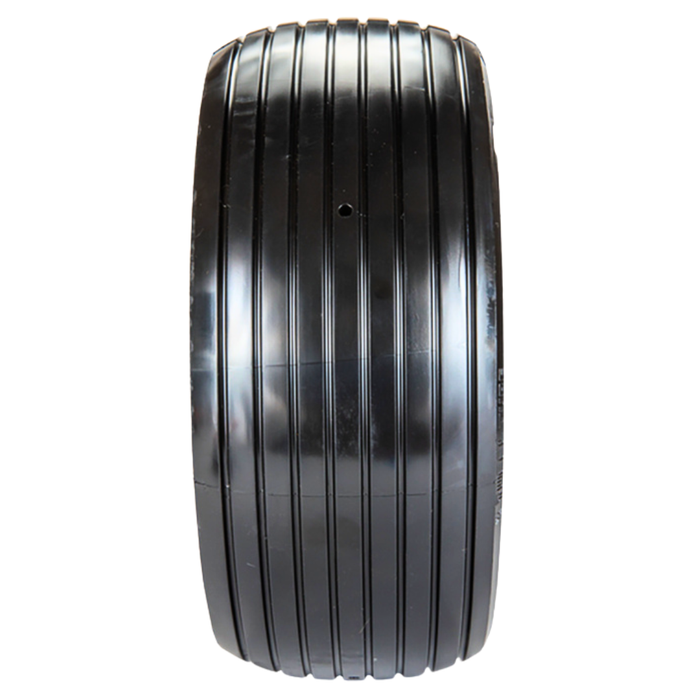

Michelin 52441 Grooved Caster Airless Tire 13x6.5N6 - 3/4" Axle

SOLD INDIVIDUALLY: Includes ONE Michelin Tweel front caster tire/wheel unit. This is NOT a pair. Order a quantity of 2 if replacing both front units.

The Michelin 52441 X Tweel Turf front caster combines an airless tire and wheel into a single unit. Its grooved polyresin tread provides an alternative to conventional pneumatic front caster tires, without air-pressure maintenance or puncture-related flats.

This 13x6.5N6 front caster features a 3/4-inch axle-bolt diameter specification and is listed for select Bobcat, Cub Cadet, Ferris, Hustler, KIOTI, Simplicity and Wright mowers. Match your exact model and deck width to the applications below, and review the spacer information before ordering.

Features and Benefits

• Airless design: No inflation or air-pressure checks required.
• Integrated tire and wheel: Replaces the conventional front caster tire/wheel unit.
• Grooved polyresin tread: Grooved tread version of the 13-inch X Tweel Turf caster.
• 3/4-inch axle specification: Designed for compatible front caster mounting applications.
• Front caster application: Fits compatible mower caster forks, not rear drive-wheel mounting.
• Application-specific installation: Confirm axle diameter, caster fork inside width and spacer requirements before installation.

Product Specifications

• Brand: Michelin
• Michelin Part Number (MSPN): 52441
• Product: X Tweel Turf Caster
• Tire Size: 13x6.5N6
• Construction: Airless front caster tire/wheel unit
• Tread: Grooved polyresin
• Position: Front
• Axle Bolt Diameter: 3/4 inch
• Maximum Load: 290 lbs per unit
• Unit Weight: 12.3 lbs
• Quantity: One front caster tire/wheel unit; not a pair

Spacer Information

Applications marked “Spacer Included” below are identified that way in the Michelin fitment guide. No separate spacer MSPN is specified for those entries. Use the supplied spacer components as directed and confirm the package contents before installation.

Bobcat XRZ Pro, XRZ and CRZ: The guide lists caster 52441 but does not specify a spacer or state that one is included for these applications. This does not guarantee that no spacer is needed. Confirm the axle diameter and caster fork inside width before ordering.

Bobcat Fitment — Spacer Included

• ProCat 6000MX: 9996005 and 9996006 — 61-inch decks.
• ProCat 6000: 9996001 and 9996003 — 52-inch decks; 9996002 and 9996004 — 61-inch decks.
• ProCat 5000: 9995010 — 48-inch deck; 9995011 and 9995008 — 52-inch decks; 9995012 and 9995009 — 61-inch decks.
• XRZ Pro RS: 942630 — 48-inch deck; 942631 — 52-inch deck; 942632 — 61-inch deck.
• ZS4000: ZS4048SK / 9994002 — 48-inch deck; ZS4052SK / 9994003 — 52-inch deck; ZS4061SF / 9994004 — 61-inch deck.
• ZT6000: ZT6052SL / 9996010 — 52-inch deck; ZT6061SL / 9996011 — 61-inch deck.
• ZT6100: ZT6161SM and ZT6161SN / 9996013 — 61-inch decks.

Bobcat Fitment — Spacer Not Specified

• XRZ Pro: 942620 — 48-inch deck; 942621 — 52-inch deck; 942622 — 61-inch deck.
• XRZ: 942610 — 48-inch deck; 942611 — 52-inch deck; 942612 — 61-inch deck.
• CRZ: 942607 — 42-inch deck; 942604 — 48-inch deck; 902605 — 52-inch deck; 902606 — 61-inch deck.

Bobcat CRZ model numbers 902605 and 902606 are reproduced as printed. Confirm your mower identification before ordering.

Cub Cadet Fitment — Spacer Included

• Pro Z 148 L EFI: 48-inch deck.
• Pro Z 148 S EFI: 48-inch deck.
• Pro Z 154 L EFI: 54-inch deck.
• Pro Z 154 S EFI: 54-inch deck.
• Pro Z 160 L EFI: 60-inch deck.
• Pro Z 160 L KW: 60-inch deck.
• Pro Z 160 S EFI: 60-inch deck.
• Pro Z 160 S KW: 60-inch deck.
• Pro Z 500 Z Turn: 54-inch deck.
• Pro Z 548 L KW: 48-inch deck.
• Pro Z 554 L KW: 54-inch deck.
• Pro Z 560 L KW: 60-inch deck.
• Pro Z 760 L KW: 60-inch deck.
• Pro Z 760 L KW EFI: 60-inch deck.
• Pro Z 772 L KW: 60-inch deck as printed in the guide; verify this model/deck combination before ordering.
• Ultima ZT2 50: 50-inch deck.
• Ultima ZT2 54: 54-inch deck.
• Ultima ZT2 60: 60-inch deck.

Cub Cadet fitment caution: The guide lists Pro Z 772 L KW with a 60-inch deck. This unusual model/deck entry requires confirmation; do not infer a different deck width from the model name.

Ferris Fitment — Spacer Included

• F160Z: 48-inch deck.
• F210Z: 61-inch deck.
• F320Z: 61-inch deck.
• IS 2600Z: 61-inch deck.

Hustler Fitment — Spacer Included

• Raptor XDX: 48-inch, 54-inch and 60-inch decks.
• Super S: 60-inch deck with the listed 13x6.5-6 original front tire configuration.
• Super SF: 60-inch and 72-inch decks.
• Raptor SD: 54-inch and 60-inch decks.
• X-One: 52-inch, 54-inch, 60-inch and 72-inch decks.
• Super Z: 54-inch, 60-inch, 66-inch and 72-inch decks.
• Hyperdrive: 60-inch, 66-inch and 72-inch decks.
• Hyperdrive Rear Discharge: 60-inch and 72-inch decks.
• Super Z Hyperdrive: 60-inch, 66-inch and 72-inch decks.
• Diesel Z Rear/Side Discharge: 60-inch and 72-inch decks.
• Fastrak SDX: 48-inch, 54-inch and 60-inch decks.
• Raptor SDX: 54-inch and 60-inch decks.
• Fastrak Side Discharge: 48-inch, 54-inch and 60-inch decks.
• Fastrak Rear Discharge: 48-inch and 54-inch decks.

Hustler Super S caution: The guide separately lists Super S Stand-On applications with 13x5-6 front tires as having no confirmed front caster fitment. Do not apply the Super S 60-inch listing to those configurations.

KIOTI Fitment — Spacer Included

• ZXR: ZXR60 — 60-inch deck.
• ZXR SE: ZXR60 SE — 60-inch deck.
• ZXC: ZXC48 — 48-inch deck; ZXC54 — 54-inch deck; ZXC60 — 60-inch deck.
• ZXC SE: ZXC48 SE — 48-inch deck; ZXC54 SE — 54-inch deck; ZXC60 SE — 60-inch deck.
• ZXC LT: ZXC48LT — 48-inch deck; ZXC54LT — 54-inch deck; ZXC60LT — 60-inch deck.

Simplicity Fitment — Spacer Included

• Courier XT: 2691952 — 48-inch deck; 2691814 — 52-inch deck; 2691815 — 61-inch deck.
• Contender XT: 5901743 — 52-inch deck; 5901744 — 61-inch deck.
• Citation XT: 5901267 and 5901954 — 52-inch decks; 5901259 and 5901984 — 61-inch decks.
• Cobalt: 5901597 and 5901748 — 61-inch decks.
• Cobalt LE: 5901798 — 61-inch deck; 5901799 — 72-inch deck.
• Ltd. Edition Zero Turn Series: 5901798 — 61-inch deck; 5901799 — 72-inch deck.

Wright Fitment — Spacer Included

• MMZ: 52-inch and 61-inch decks.

Important Fitment Information

This listing covers only the mower models, configurations and deck widths listed above. Compatibility is not established for other models within the same series.

SCAG and Spartan applications are not listed for MSPN 52441 in the supplied guide. Do not substitute this 3/4-inch axle caster for the 5/8-inch axle versions solely because the tire size matches.

Front caster fitment is separate from rear tire fitment. Some applications listed above do not have a confirmed rear Tweel option.

Tire size alone does not establish compatibility. Confirm Michelin part number 52441, mower model, deck width, axle diameter, caster fork inside width and spacer requirements before ordering.

Model years are not specified in the supplied fitment information.
