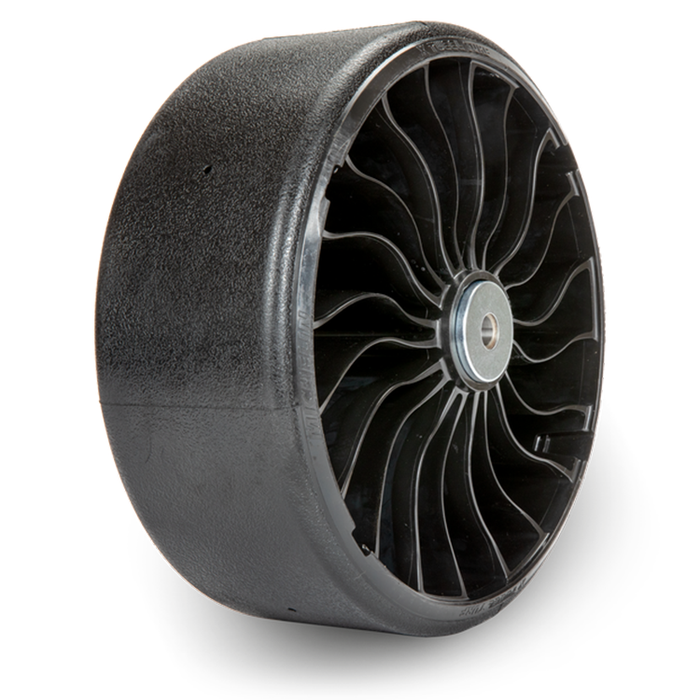

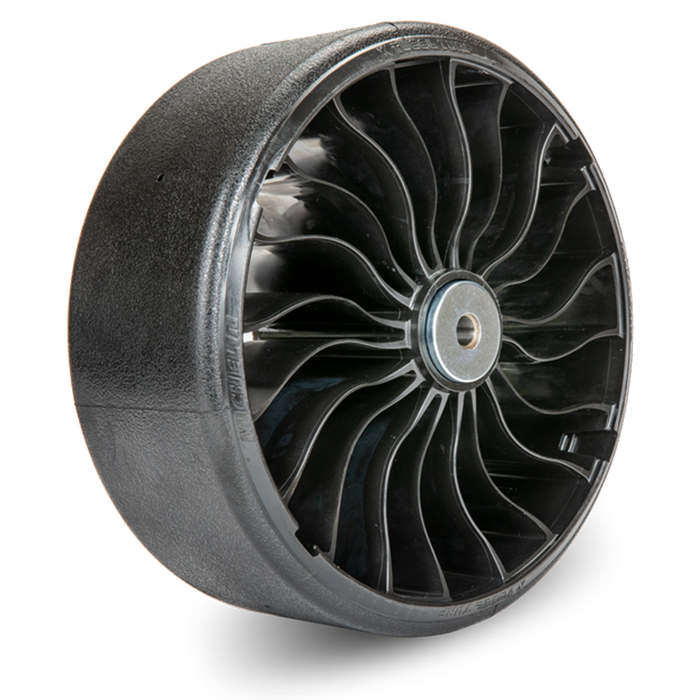

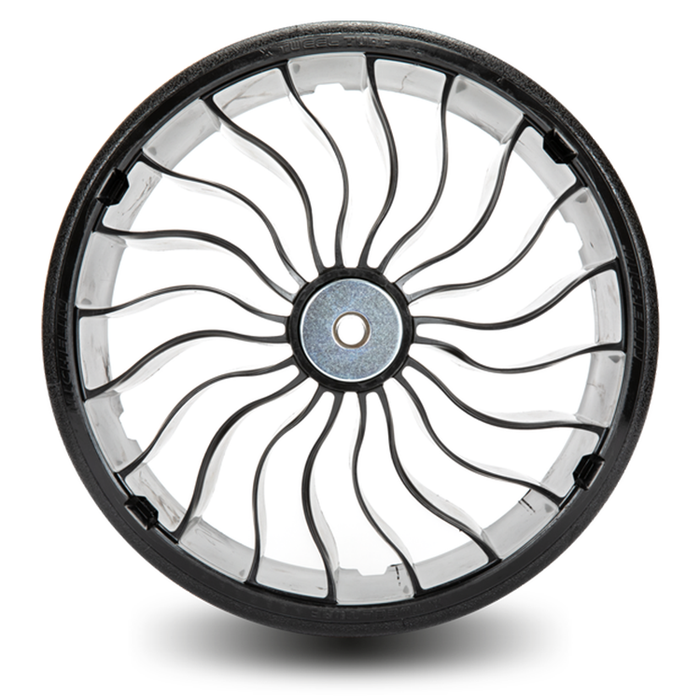

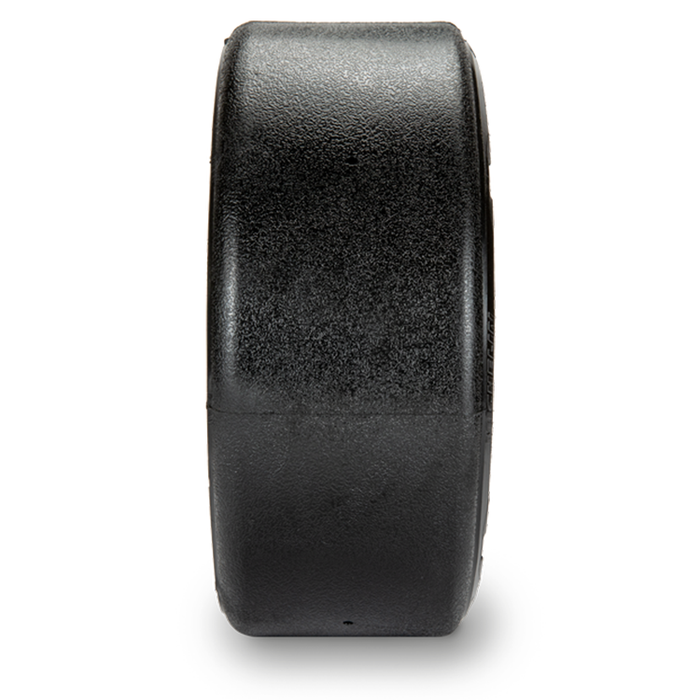

Michelin X Tweel Turf 13x6.5N6 Front Caster – Smooth or Grooved

SOLD INDIVIDUALLY: Includes ONE Michelin Tweel front caster tire/wheel unit in your selected tread style. This is NOT a pair. Order a quantity of 2 if replacing both front units.

The Michelin X Tweel Turf front caster combines an airless tire and wheel into a single unit, replacing the conventional front caster tire/wheel assembly. Choose Smooth tread (Michelin 41011) or Grooved tread (Michelin 73818). Both options eliminate air-pressure maintenance and puncture-related flats.

Designed for the SCAG and Spartan mower applications listed below, both 13x6.5N6 front caster options feature a 5/8-inch axle-bolt diameter specification before application-specific spacer adaptation. Match your mower's axle diameter and caster fork inside width to the required installation components.

Features and Benefits

• Airless design: No inflation or air-pressure checks required.
• Integrated tire and wheel: Replaces the conventional front caster tire/wheel unit.
• Choice of tread: Select smooth or grooved polyresin tread.
• Front caster application: Designed for compatible mower caster forks, not rear drive-wheel mounting.
• Application-specific installation: Match the selected caster and required spacer to your mower model, axle diameter and fork dimensions.

Product Specifications

• Brand: Michelin
• Product: X Tweel Turf Caster
• Tire Size: 13x6.5N6
• Construction: Airless front caster tire/wheel unit
• Position: Front
• Axle Bolt Diameter: 5/8 inch, before application-specific spacer adaptation
• Maximum Load: 290 lbs per unit
• Quantity: One front caster tire/wheel unit in the selected tread style; not a pair

Tread Options and Part Numbers

• Smooth: Michelin MSPN 41011 — smooth polyresin tread; unit weight 12.6 lbs.
• Grooved: Michelin MSPN 73818 — grooved polyresin tread; unit weight 12.5 lbs.

Both tread options share the SCAG and Spartan applications and spacer requirements listed below.

SCAG Fitment and Spacer Requirements

• Patriot: SPZ52H — 52-inch deck; SPZ561H — 61-inch deck. Requires spacer 38182.
• Tiger Cat II: STCII-48 — 48-inch deck; STCII-52 — 52-inch deck; STCII-61 — 61-inch deck. Requires spacer 40653.
• Turf Tiger II: STTII-52V — 52-inch deck; STTII-61V — 61-inch deck; STTII-72V — 72-inch deck. Requires spacer 40653.
• V-Ride II: SVRII-61V — 61-inch deck. No additional spacer specified in the fitment guide. Confirm axle diameter and fork width before installation.
• Cheetah: All models with 61-inch and 72-inch decks. Requires spacer 38182.
• Cheetah II: SCZII-61 — 61-inch deck; SCZII-72 — 72-inch deck. Requires spacer 40653.

Spartan Fitment and Spacer Requirements

All Spartan applications listed below require spacer 38182.

• RZ: 48-inch and 54-inch decks.
• RZ C: 42-inch and 54-inch decks.
• RZ PRO: 54-inch and 61-inch decks.
• RZ HD: 48-inch, 54-inch and 61-inch decks.
• RT PRO: 54-inch and 61-inch decks.
• RT HD: 54-inch, 61-inch and 72-inch decks.
• SRT PRO: 54-inch and 61-inch decks.
• SRT HD: 54-inch and 61-inch decks.
• SRT XD: 61-inch and 72-inch decks.
• SRT XDe: 54-inch and 61-inch decks.
• Mark Mart SRT: 61-inch and 72-inch decks.
• KGZ-XD: 61-inch deck.
• KG-XD: 54-inch and 61-inch decks.
• KG-PRO: 54-inch and 61-inch decks.

Spacer Identification

• 38182: Spacer application for a 1/2-inch axle bolt and 7-inch caster fork inside width with this 13-inch caster.
• 40653: Spacer application for a 1/2-inch axle bolt and 7-3/4-inch caster fork inside width with this 13-inch caster.

Spacer numbers identify installation components, not additional caster tires. Confirm that the required spacer is included in your order; do not assume it is supplied with the caster. Match both axle diameter and caster fork inside width when selecting installation components.

Important Fitment Information

SCAG V-Ride II SVRII-32A, SVRII-36A, SVRII-48V and SVRII-52V applications are not included. This listing also does not establish fitment for SCAG V-Ride XL, Freedom Z, Liberty Z or EVZ mowers.

Front caster fitment is separate from rear tire fitment. A confirmed front caster application does not establish compatibility with a rear Tweel tire.

Model names are reproduced as supplied, including Patriot SPZ561H and Spartan Mark Mart SRT. References to “all models” apply only within the named series and listed deck widths.

Tire size alone does not establish compatibility. Confirm your selected Michelin part number — 41011 Smooth or 73818 Grooved — mower model, deck width, axle diameter, caster fork inside width and required spacer before ordering.

Model years are not specified in the supplied fitment information.
